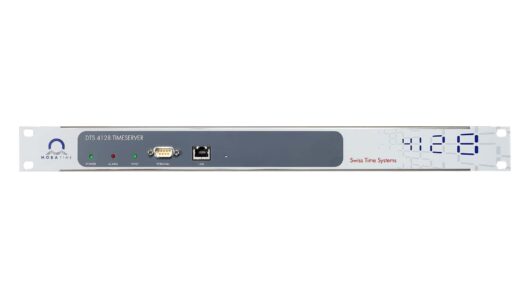

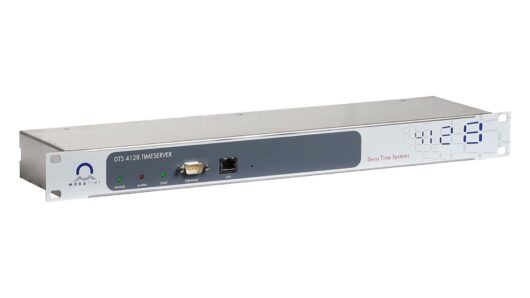

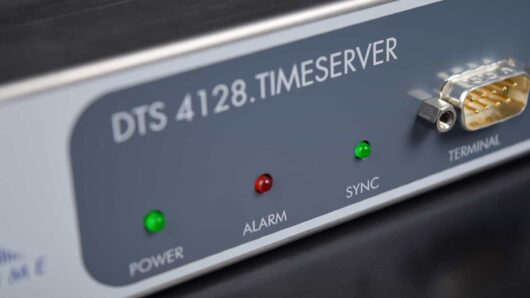

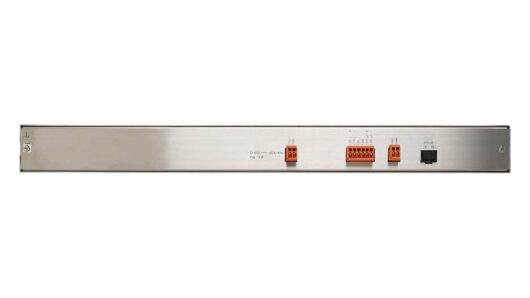

Servidor de tiempo NTP - DTS 4128

Servidor de tiempo NTP - DTS 4128

El DTS 4128 es una referencia horaria de gran precisión en redes de tamaño medio (IPV4/IPV6).

Tipo de oscilador:TCXO
1 puerto LAN (RJ45):proporciona NTP (<1500 peticiones/s)

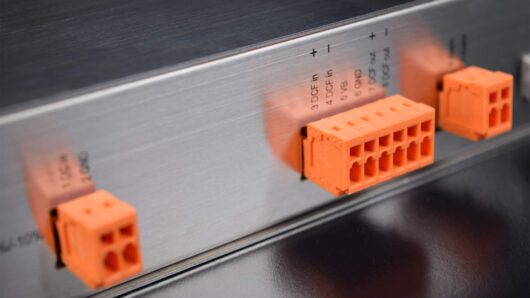

Salidas:1x salida de bucle de corriente DCF
Hora de alta precisión:Recepción horaria del GPS
Redundancia:funcionamiento maestro-esclavo con conmutación automática en caso de error
Mostrar más
Configuración IPDHCP, IP estática
AlimentaciónEntrada CC: 24 V CC + 20 % / - 10 % / máx. 10 W
PrecisiónGPS (entrada DCF) a servidor NTP: típico < ± 100 μs / GPS (entrada DCF) a salida DCF: típico < ± 10 μs
OperaciónTerminal serie vía RS232 / LAN
CronometrajeSincronizado con GPS
Mostrar más
DTS 4128.timeserver



GNSS stands for Global Navigation Satellite System, and is an umbrella term that encompasses all global satellite positioning systems. This includes several constellations of satellites orbiting over the earth’s surface and continuously transmitting signals providing an autonomous geo-spatial positioning with global coverage.

The GPS constellation (developed and controlled by the USA) is still the most widely used GNSS in the world but major countries have now developed their own constellation: Glonass (Russia), Beidou (China), and Galileo (Europe) with improved accuracy

GNSS is used in collaboration with GPS systems where all GNSS receivers are compatible with GPS, but GPS receivers are not necessarily compatible with GNSS.

A GPS receiver has been designed to receive the GPS constellation only (24 satellites) when GNSS-compatible equipment can use navigational satellites from other networks (each network is controlling between 24 and 30 satellites). It is therefore recommended to use GNSS receivers for positioning and timing applications.

El DTS 4128 es una referencia horaria de gran precisión en redes de tamaño medio (IPV4/IPV6).
