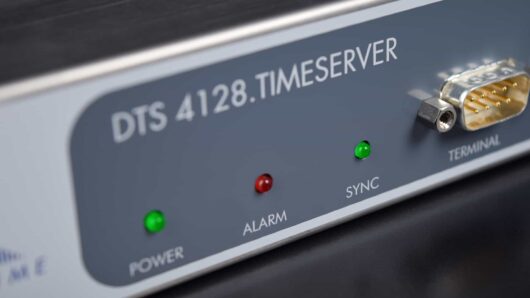

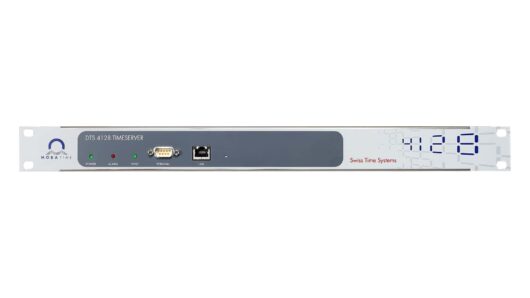

Serveur de temps NTP - DTS 4128

Serveur de temps NTP - DTS 4128

Le DTS 4128 est une référence de temps très précise pour les réseaux de taille moyenne (IPV4/IPV6).

Type d'oscillateur :TCXO
1 port LAN (RJ45) :fournit NTP (<1500 requêtes/s)

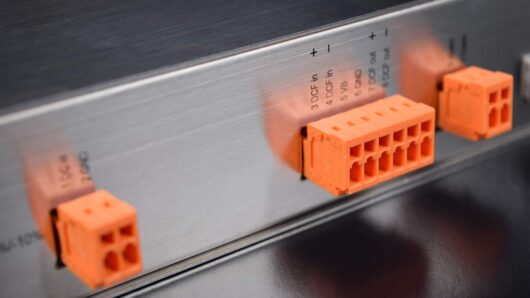

Sorties :1x sortie boucle de courant DCF
Heure de haute précision :Réception de l'heure du GPS
Redondance :fonctionnement maître-esclave avec commutation automatique en cas d'erreur
Afficher plus
Configuration IPDHCP, IP statique
Alimentation électriqueEntrée DC : 24 VDC + 20 % / - 10 % / max. 10 W
PrécisionGPS (entrée DCF) vers serveur NTP : typique < ± 100 μs / GPS (entrée DCF) vers sortie DCF : typique < ± 10 μs
FonctionnementTerminal série via RS232 / LAN
Le chronométrageSynchronisé avec le GPS
Afficher plus
DTS 4128.timeserver



GNSS stands for Global Navigation Satellite System, and is an umbrella term that encompasses all global satellite positioning systems. This includes several constellations of satellites orbiting over the earth’s surface and continuously transmitting signals providing an autonomous geo-spatial positioning with global coverage.

The GPS constellation (developed and controlled by the USA) is still the most widely used GNSS in the world but major countries have now developed their own constellation: Glonass (Russia), Beidou (China), and Galileo (Europe) with improved accuracy

GNSS is used in collaboration with GPS systems where all GNSS receivers are compatible with GPS, but GPS receivers are not necessarily compatible with GNSS.

A GPS receiver has been designed to receive the GPS constellation only (24 satellites) when GNSS-compatible equipment can use navigational satellites from other networks (each network is controlling between 24 and 30 satellites). It is therefore recommended to use GNSS receivers for positioning and timing applications.

Le DTS 4128 est une référence de temps très précise pour les réseaux de taille moyenne (IPV4/IPV6).
